Tomei 433003

Tomei Expreme Outlet Component For EVO 7-9

3 Weeks

New product

840.00 CHFtax incl.



The increased diameter and flow capacity improves exhaust efficiency whilst reducing secondary exhaust pressure.
The ver.2 was developed to cope with the demands of advanced 4G63 tuning.
In addition, the 74% overall weight reduction improves the vehicle’s responsiveness.

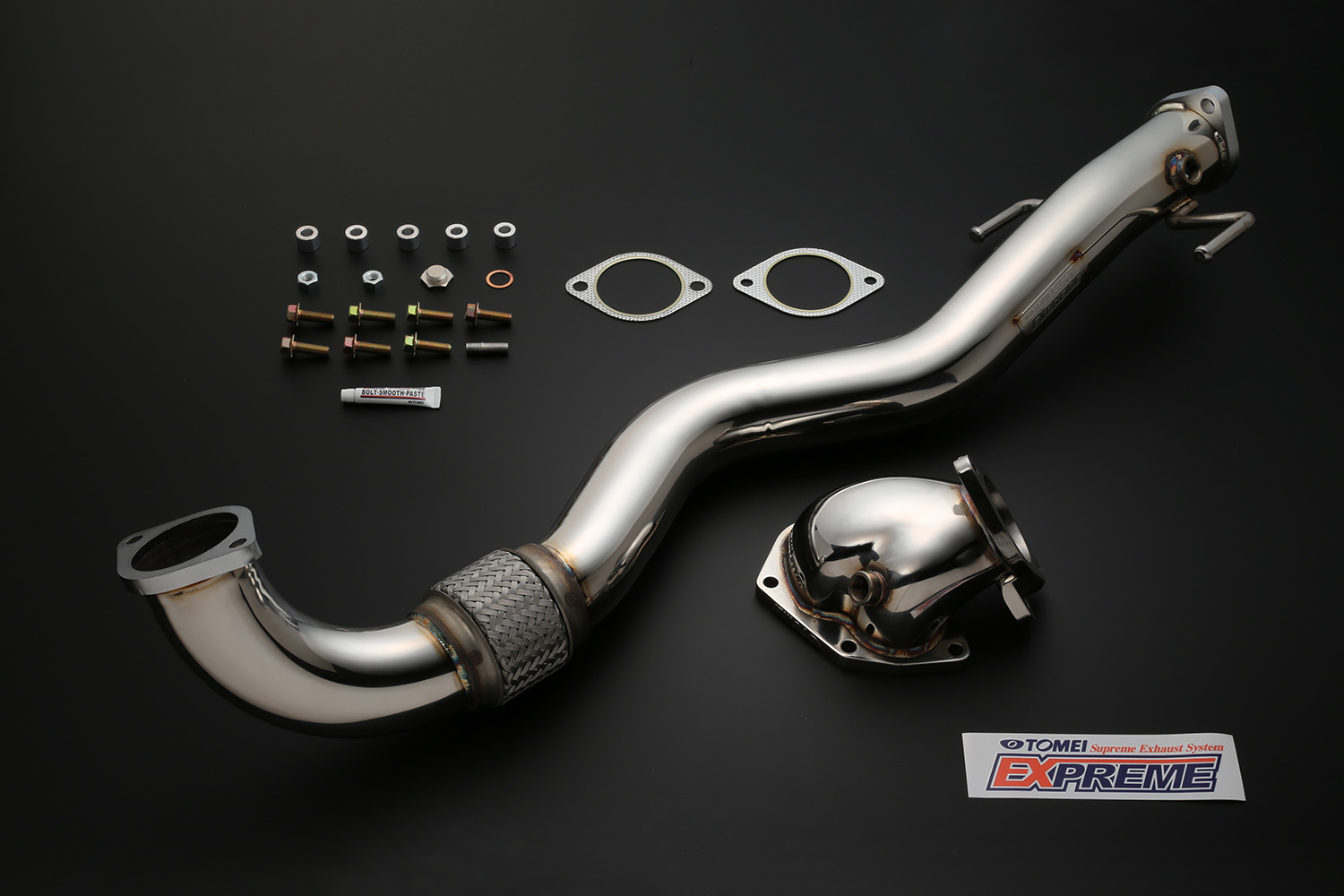

KIT CONTENTS
TURBINE OUTLET ALUMINUM SPACER
FRONT PIPE HEX NUT
GASKET
(OUTLET TO FRONT PIPE)
COPPER WASHER
GASKET
(FRONT PIPE TO CATALYST)
BLIND BOLT
FLANGE BOLT BOLT SMOOTH PASTE
STUD BOLT
STUD BOLT M10-40 P=1.25 (THREAD 12/26)
APPLICATION PART NUMBER
MITSUBISHI LANCER EVOLUTION VII-IX MR 4G63 433003
CHF 840.- TTC
TURBINE OUTLET
940cc High Flow Wide Mouth (vs. stock:130%/vs. old ver.:120%)
58% Weight Reduction

Step-less flange
High strength and precision made using Lost-Wax Casting
Complete with turbo charger bracket
Complete with O2 Sensor Boss
hikaku01.jpg spacer_25-25.gif hikaku02.jpg
hikaku03.jpg spacer_25-25.gif hikaku04.jpg
hikaku05.jpg spacer_25-25.gif spacer_25-25.gif
MATERIAL
VOLUME(cc)
WEIGHT
(kg/lbs)
EXIT DIA.
(Φ)
FLANGE THICKNESS(mm)
  MAIN FLANGE FRONT REAR
STOCK
Cast Iron
Cast Iron
690
3.0 / 6.61
56.5
13.5
14.5
TOMEI
SUS304
SUS304
940 (old ver. 780)
1.75 / 3.86
73.3
11.0
11.5
FRONT PIPE
3” Large Diameter Pipe
84% Weight Reduction
3” Diameter Through to Catalytic Converter
Stress-dispersing flexible pipe
Step-less Flange
Fits well with underside layout
hikaku06.jpg spacer_25-25.gif hikaku07.jpg
hikaku08.jpg spacer_25-25.gif spacer_25-25.gif

MATERIAL
PIPE DIA. (Φ)
PIPE
THICKNESS(mm)
WEIGHT(kg/lbs)
FLANGE THICKNESS(mm)
  MAIN FLANGE FRONT REAR
STOCK
Iron
Steel sheet
60.5
1.5
4.8 / 10.58
2.0
12.0
TOMEI
SUS304
Iron
76.3
1.5
4.05 / 8.93
11.5
12.0


Compatiblity Mitsubishi EVO 7-9 (4G63)
