EJ20/25 Single Scroll Tomei Turbine Kit

10-15 working days

New product

1'970.00 CHFtax incl.

ARMS M7760/M7960/M8625 SINGLE SCROLL TURBINE KIT for EJ

TURBO CHARGER

PRODUCT INFO

APPLICATIONP/NCHFNOTES
EJ20/25 Single Scroll
※Please see the table below.
173016 1830.- (Tax inc 1970.-)
173023

FEATURE / SPEC

AVAILABLE IN 3 SIZES

The M7760 retains the stock response feel, with added power gains. The M7960 delivers great upper mid range power, with even more power gains possible. When peak power is a priority over response, there is only one option. The M8265 will deliver unleash your engines full potential.

M7760


Now comes standard with the new Billet Actuator. Retains the response feel of the original stock turbo, but delivers increased power gains even at higher up in the power band range without sacrificing torque.

M7960


Retains the low speed power range, with that extra punch at mid to high speed range. This is turbo has the balanced transient characteristics to produce peak power to suit those who want the best of both worlds.


Application

IMPREZA JDMFORESTER
GC8 GD-AB GD-CD GR/GV SF5 SG5
GFA GDB GDA A-LINE
EJ207 EJ205 EJ207 EJ205 EJ257 EJ205 EJ205

IMPREZA USDM
GD 01-03 GD 04-05 GD 06-07 GR 08- GV 11-
WRX WRX STI STI STI STI
EJ205 EJ205 EJ257 EJ257 EJ257 EJ257

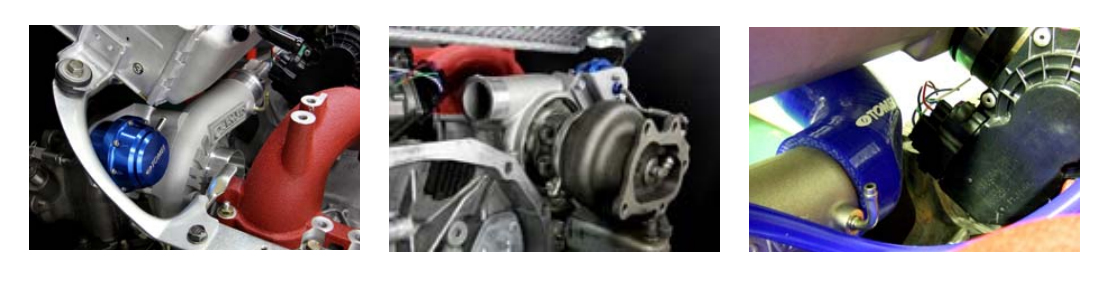

  • Previously compatible with GD chassis, it is now compatible with both GR/GV chassis with a newly designed actuator bracket.
  • The actuator rod has also been newly designed, securing the clearance with the intercooler.
  • Compressor OUT hose is now included to secure the clearance from the electric throttle position sensor.

100% BOLT ON


The ARMS series turbo kits all come supplied with all the required gaskets and fitting accessories for a true bolt on application out of the box. So it can be installed immediately without the need to hunt for other parts.

FLOATING METAL

A Floating Bearing (Journal Bearing) was adopted for use on the shaft.

1 YEAR WARRANTY


The ARMS EJ M7760/M7960/M8625 Turbine Kits come with a 1 year limited warranty after the product has been registered with Tomei Powered shortly after purchase.

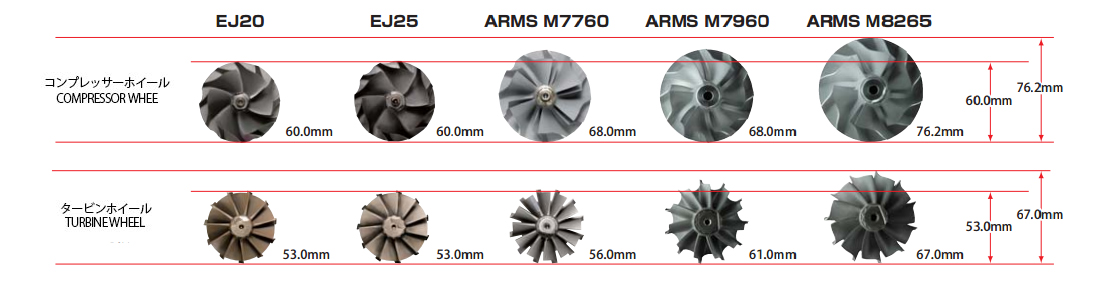

  • COMPRESSOR WHEEL DATA
TYPETRIMINNER DIA.OUTER DIA.BLADES
EJ20 STD APPROX. 60.0 6/6
EJ25 STD APPROX. 60.0 6/6
ARMS M7760 60 60 52.6 68.0 6/6
ARMS M7960 60 60 52.6 68.0 6/6
ARMS M8265 65 52 54.8 76.2 6/6
  • TURBINE WHEEL DATA
TYPETRIMOUTER DIA.EXIT DIA.BLADES
EJ20 STD APPROX. 53.0
EJ25 STD APPROX. 53.0 -–
ARMS M7760 77 76.9 49.1 56.0 12
ARMS M7960 79 78.4 54.0 64.0 12
ARMS M8265 82 77.1 58.8 67.0 11

  • FLAT PRIMARY EXHAUST PRESSURE
The initial spool characteristics is just right, with a seamless linear power curve that matches the engines RPM with the power output. This gives the best drivability results.
  • MAINTAINING OUTPUT EVEN AT HIGHER TUNED LEVELS
The initial spool characteristics is just right, with a seamless linear power curve that matches the engines RPM with the power output. This gives the best drivability results.

Road Legal in Switzerland No. For race only.
